Best Thermal Monocular XM Series

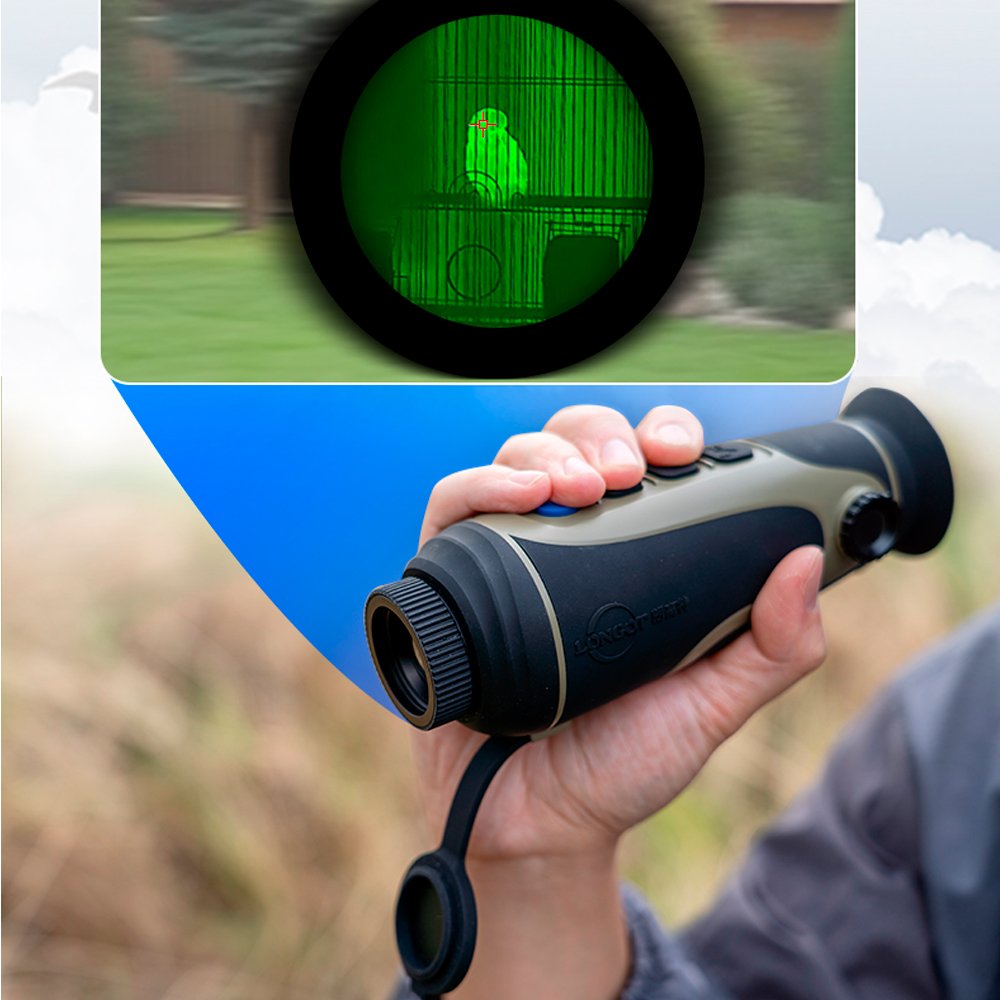

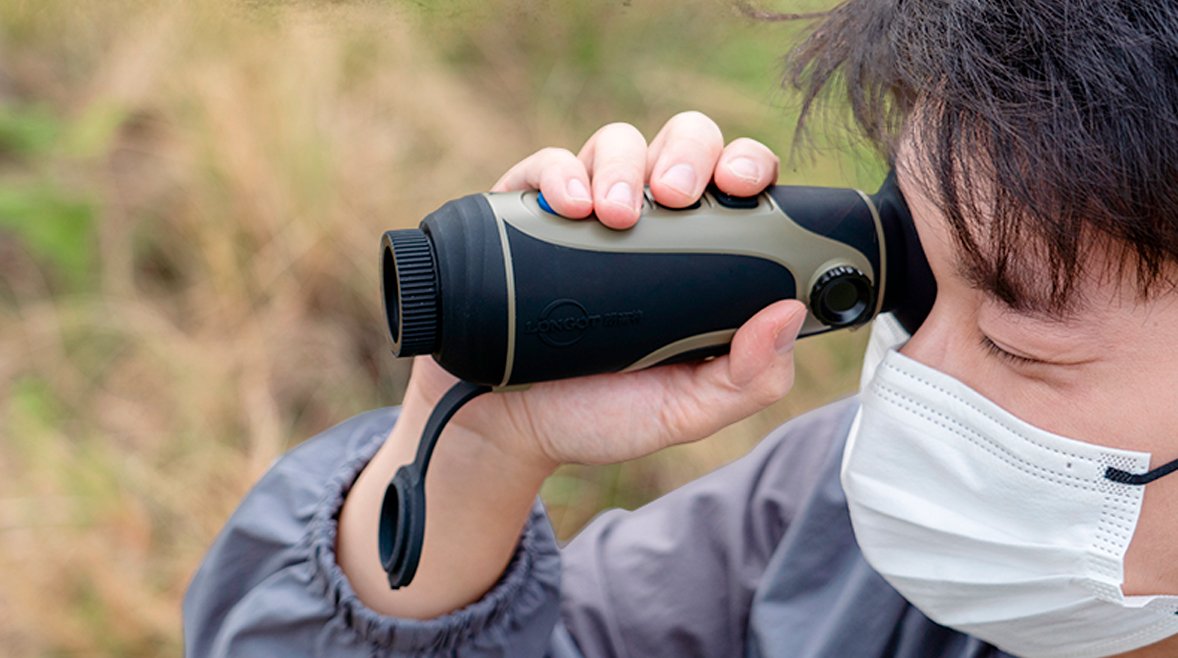

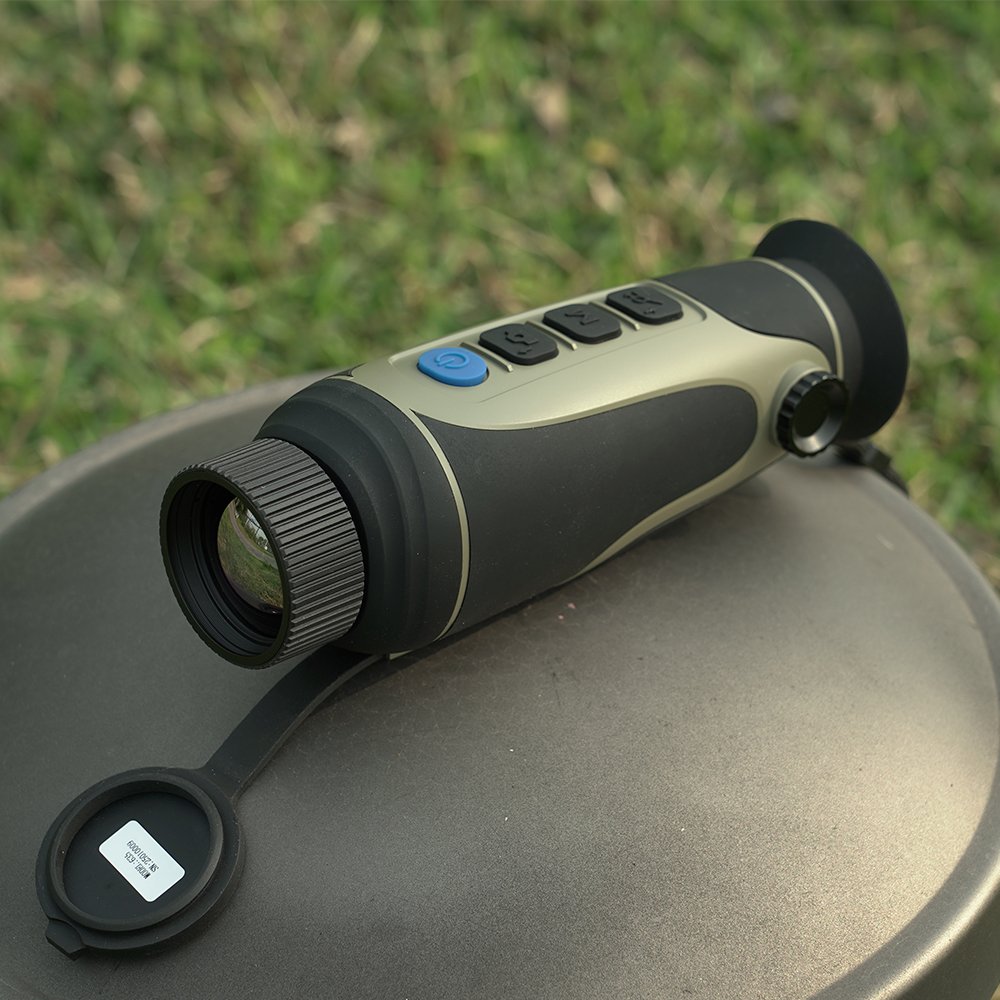

The XM Series products are lightweight and portable, enabling one-handed operation. With a compact design, classic structure, powerful functionality, and exceptional imaging performance, they stand out as an excellent choice. MATE supports practical functions, LRF indication and monocular extension. It is the ideal mate for users who want a compact size and great value.
Superior Image Clarity – Even in Low-Visibility Conditions

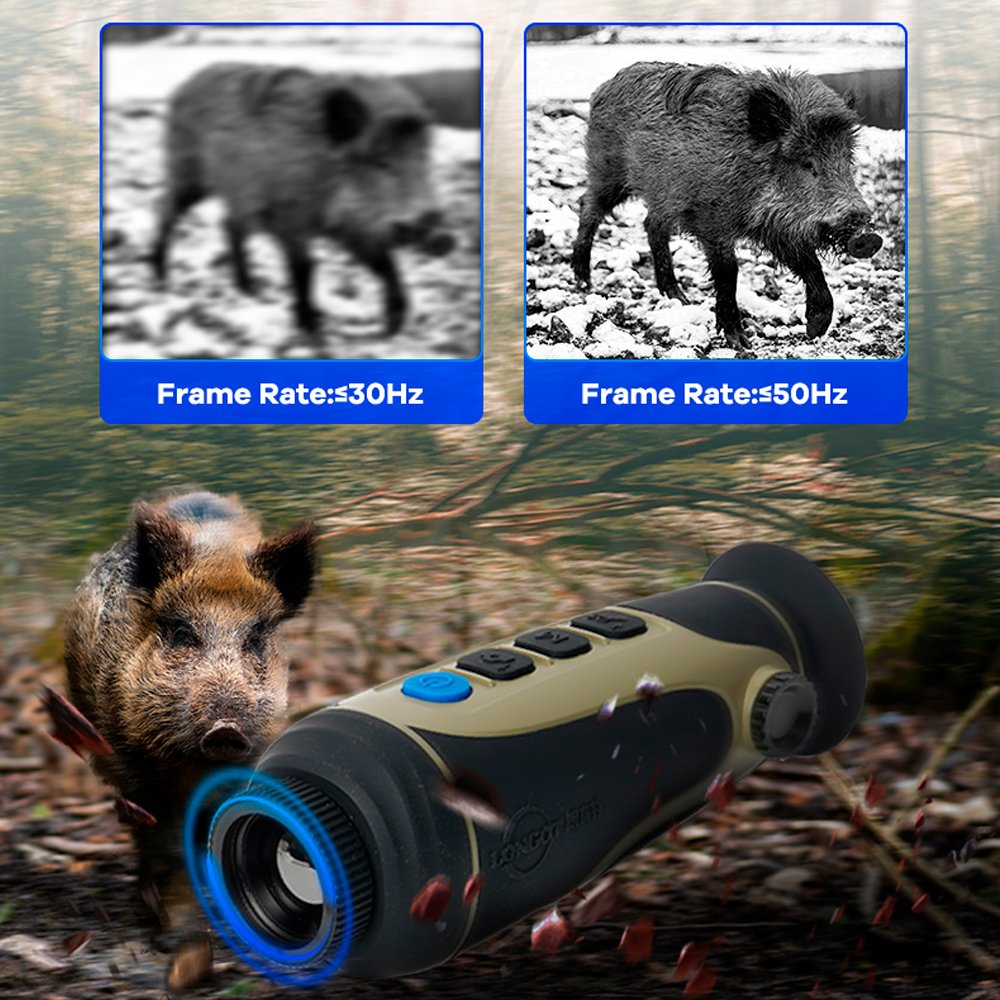

Latest Thermal Sensor, upgraded image quality
Equipped with a powerful VOX 12μm imaging sensor, NETD<35mK ensure that the goal is clear and distinguishable. Even in a completely black environment, it still presents delicate picture quality, 50fps full frame rate provides smooth and stable dynamic video, bringing excellent visual experience.

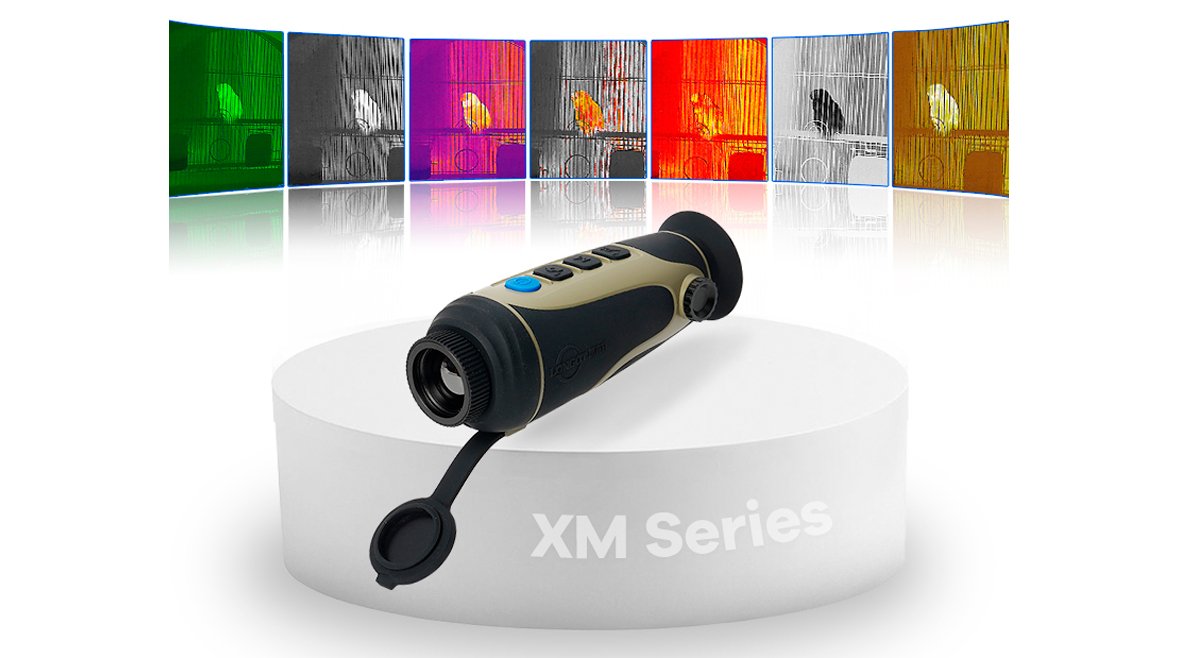

Multiple Image Palettes
Easily adapt to various scenarios, enjoy diverse imaging modes, support white hot, black hot, iron red, fluorescent, dark brown, red hot, ghost and
other imaging modes can be freely switched according to different environments and needs, ensuring clear target recognition and presenting excellent
visual effects day and night.

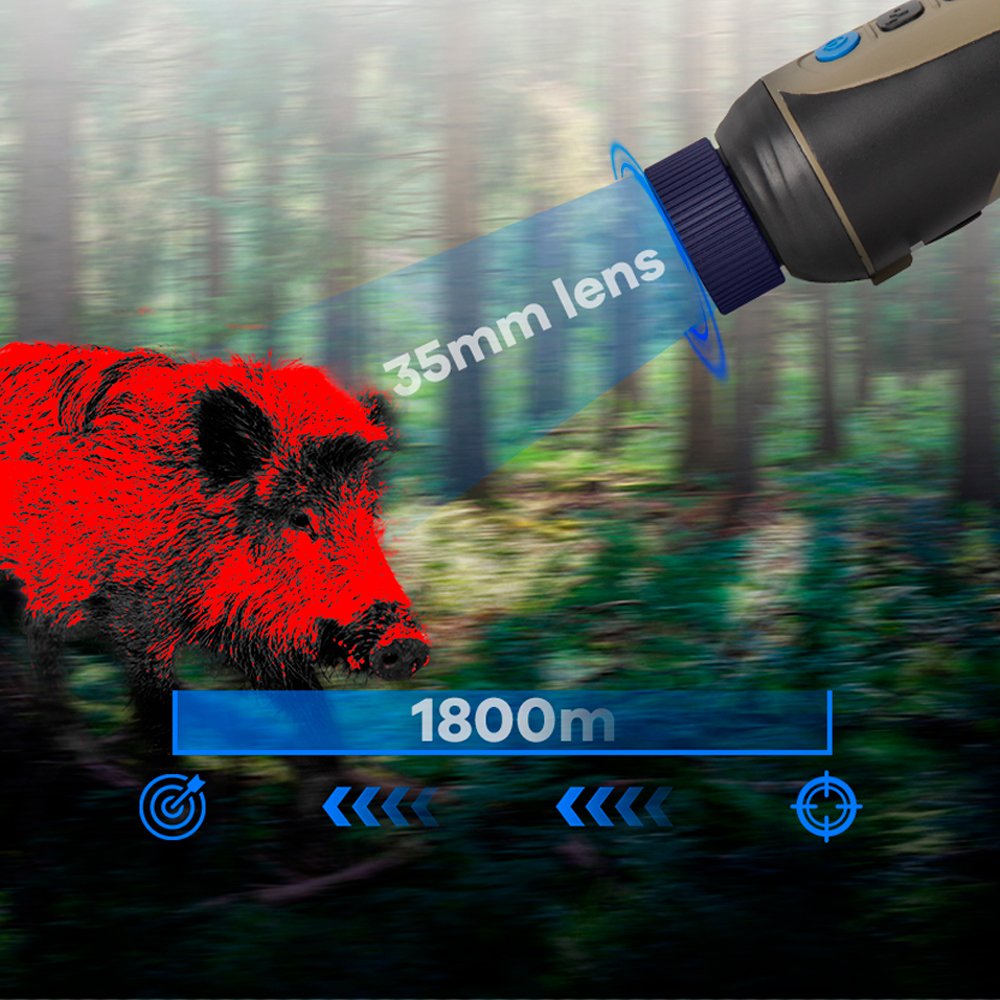

Long Detection Range
The device is equipped with a high-performance 35mm objective lens and advanced thermal imaging hardware, with excellent night vision capabilities. In completely dark environments, it can accurately detect targets with a maximum detection distance of 1800 meters, providing users with a clear and stable observation experience.
Hot-tracking
After the device is turned on, the screen will display a crosshair and automatically lock the target with the strongest heat source in the field of view, effectively improving tracking efficieny. No matter the target moves or the background changes, the hotspot tracking function can continuously and stable locate the target, ensuring that users accurately discover and track the target.

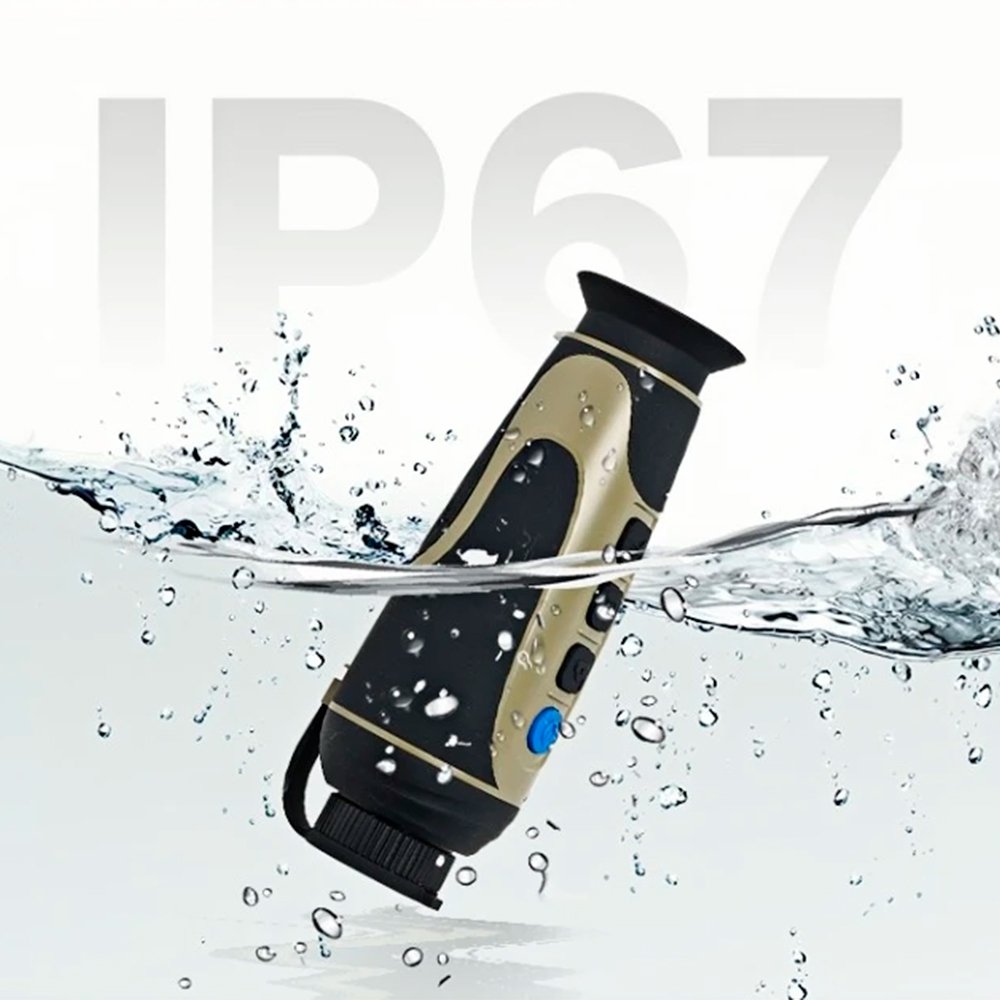

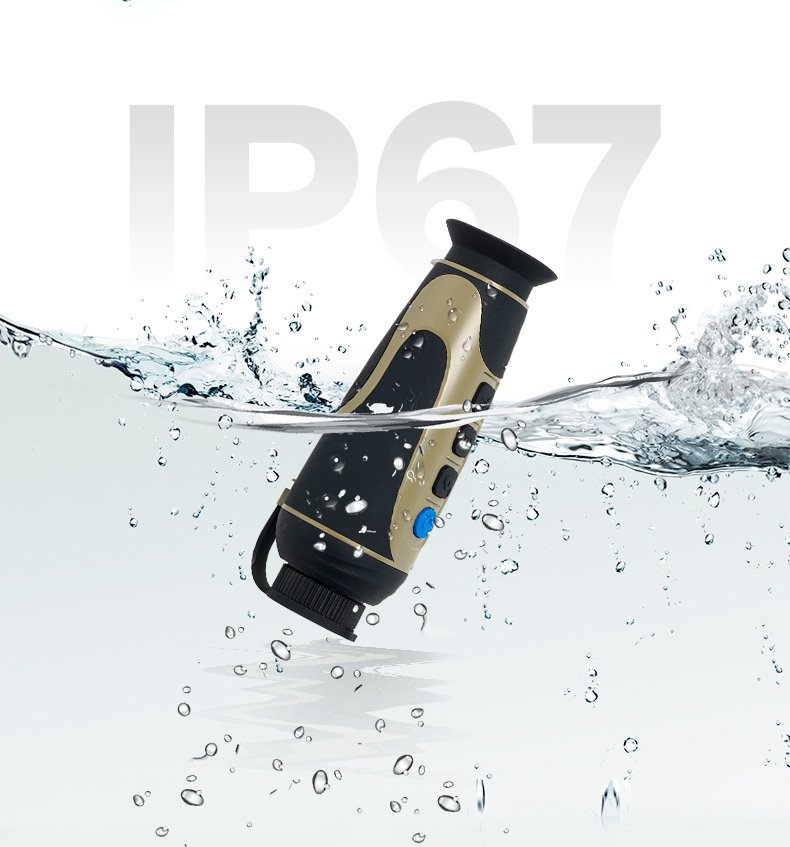

Protection Grade
Stable performance , coping with extreme environments, whether it is rainstorm, snow, fog or heavy haze, the equipment can still operate stably, ensure clear imaging and accurate target recognition, and provide reliable support for various complex environments.

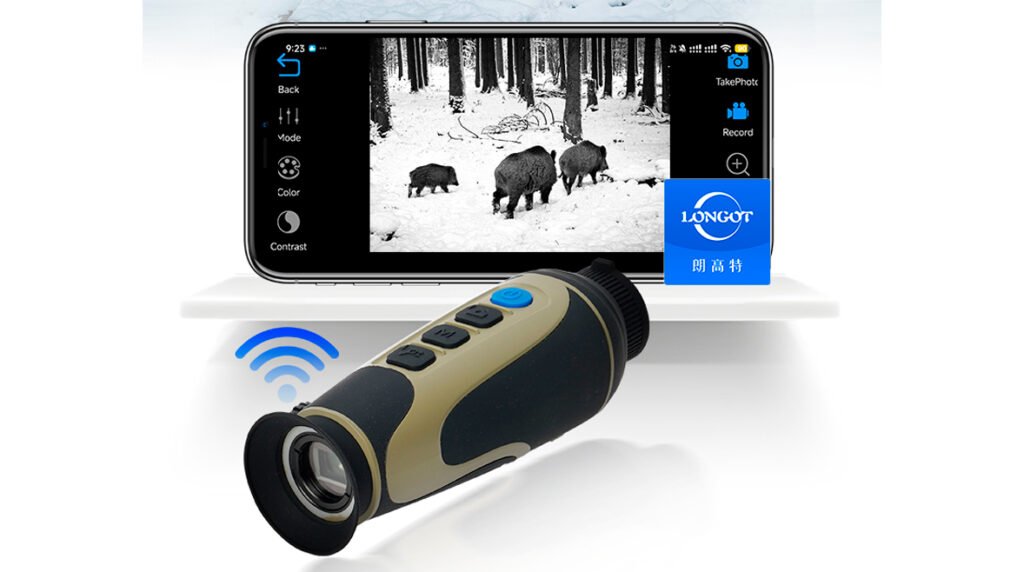

WiFi Connectivity
Supports connection with Longot mobile app, allowing users to preview thermal imaging images in real-time on their mobile device and easily take photos and record videos, enhancing operational convenience.
Other Feaures
Ideal For
Military and Law Enforcement
Outdoor Adventure
Used for nighttime terrain surveys or avoiding dangerous animals (such as bears and snakes) when climbing or camping
Night observation
XM Series Thermal Monocular : The best adventure companion
| Product Type | XM2 | XM3 | XM4 | XM5 | XM6 | XM9 |
|---|---|---|---|---|---|---|
|
Thermal Module |
||||||
|
Image Sensor |
Uncooled Vox |
Uncooled Vox |
Uncooled Vox |
Uncooled Vox |
Uncooled Vox |
Uncooled Vox |
|
Max.Resolution ( pixel ) |
256x192 |
384x288 |
384x288 |
384x288 |
640x512 |
640x512 |
|
Frame Rate |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
|
Pixel Interval ( μm) |
12*12 |
12*12 |
12*12 |
12*12 |
12*12 |
12*12 |
|
NETD （mK） |
≤40 |
≤30 |
≤30 |
≤30 |
≤25 |
≤25 |
|
Objective Lens (mm)/Aperture |
15 / F1.0 |
15 / F1.0 |
19 / F1.0 |
25 / F1.0 |
25 / F1.0 |
35 / F1.0 |
|
Detection Range ( m ) (Target Size: 1.7mx0.5m) |
800 |
1000 |
1000 |
1200 |
1200 |
1200 |
|
Detection Range ( m ) ( Vehicle ) |
1500 |
1800 |
1800 |
2400 |
2400 |
3500 |
|
Field of View |
13.8°x10.4° |
13.8°x10.4° |
13.8°x10.4° |
10.5°x7.9° |
17.5°x13.1° |
12.5°x9.4° |
|
Magnification ( x ) |
2.1 |
1.4 |
1.8 |
2.3 |
1.4 |
2.0 |
|
Digital Zoom ( x ) |
1/2/4 |
1/2/4 |
1/2/4 |
1/2/4 |
1/2/4/8 |
1/2/4/8 |
|
Mini Focus Distance M/Y |
5 |
5 |
5 |
5 |
5 |
10 |
|
Exit Pupil Distance, mm |
13 |
13 |
13 |
13 |
13 |
13 |
|
Exit Pupil Diameter, mm |
6 |
6 |
6 |
6 |
6 |
6 |
|
Display Type |
640x480 |
640x480 |
640x480 |
640x480 |
640x480 |
640x480 |
|
WiFi Frequency, HZ |
2.4GHz |
2.4GHz |
2.4GHz |
2.4GHz |
2.4GHz |
2.4GHz |
|
Image Mode |
White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot,Ghost |
White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot,Ghost |
White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot,Ghost |
White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot,Ghost |
White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot,Ghost |
White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot,Ghost |
|
Diopter ( Range ) (D) |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
|
System |
||||||
|
Capture Snapshot |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Record Video |
on-board video recording |
on-board video recording |
on-board video recording |
on-board video recording |
on-board video recording |
on-board video recording |
|
Storage (GB) |
32 |
32 |
32 |
32 |
32 |
32 |
|
Power Supply, v |
3~4.2v |
3~4.2v |
3~4.2v |
3~4.2v |
3~4.2v |
3~4.2v |
|
PIP |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
WiFi Connectivity |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Uniformity Correction |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Battery Type |
18650 ⅹ1
(Built-in) |
18650 ⅹ1
(Built-in) |
18650 ⅹ1
(Built-in) |
18650 ⅹ1
(Built-in) |
18650 ⅹ1
(Built-in) |
18650 ⅹ1
(Built-in) |
|
Battery Operation Time (h) |
≥7
|
≥7
|
≥7
|
≥7 |
≥6
|
≥6
|
|
Battery Capacity |
3200mAh |
3200mAh |
3200mAh |
3200mAh |
3200mAh |
3200mAh |
|
Anti-reverse Battery Connection |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Overvoltage Protection |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
External Power Supply |
5V, 2A |
5V, 2A |
5V, 2A |
5V, 2A |
5V, 2A |
5V, 2A |
|
General |
||||||
|
Working Temperature/Humidity |
-30℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
-20℃~+50℃ |
|
Protection Level |
IPX7 |
IPX7 |
IPX7 |
IPX7 |
IPX7 |
IPX7 |
|
Body Material |
Plastic + Silicon |
Plastic + Silicon |
Plastic + Silicon |
Plastic + Silicon |
Plastic + Silicon |
Plastic + Silicon |
|
Dimension （mm） |
172*58.5*62 |
172*58.5*62 |
172*58.5*62 |
172*58.5*62 |
172*58.5*62 |
172*58.5*62 |
|
Weight ( g ) |
372 |
345 |
345 |
355 |
355 |
380 |
|
Port |
Type-C |
Type-C |
Type-C |
Type-C |
Type-C |
Type-C |
