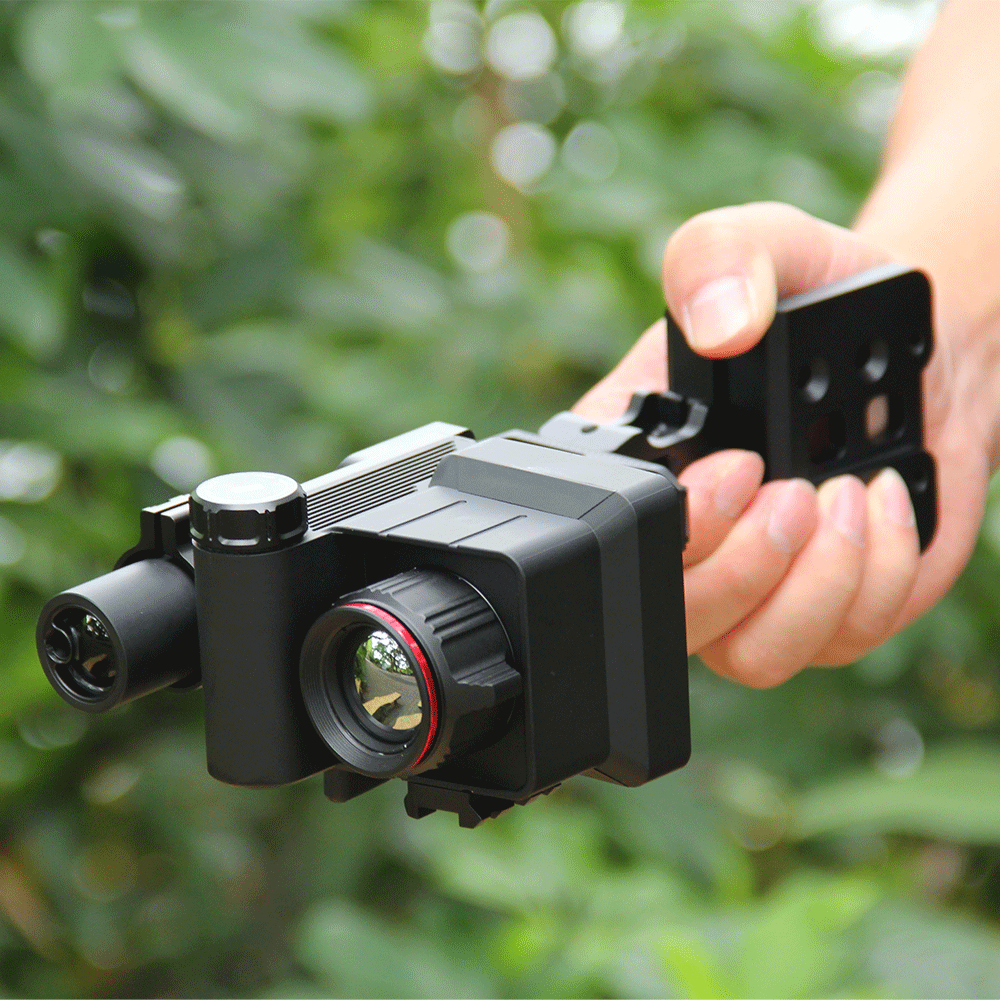

Composite Bow Thermal Imager AR3L

$1,999.00

Delivery: Fast-Delivery Guarantee
Lead time : 3-7 working days
Return policy:15-Day Returns
Features:
  • Upgraded 2.69” AMOLED display, Plastic Shield For No Light Leakage
  • Equipped with a self-developed 12μm 384×288 sensor
  • Ultra-clear Image Processing Mode
  • 1000m Precision Laser Rangefinder
  • Enhanced Quick Detach Lever
  • Weather-proof Screen
  • Ample 32GB Built-in Memory

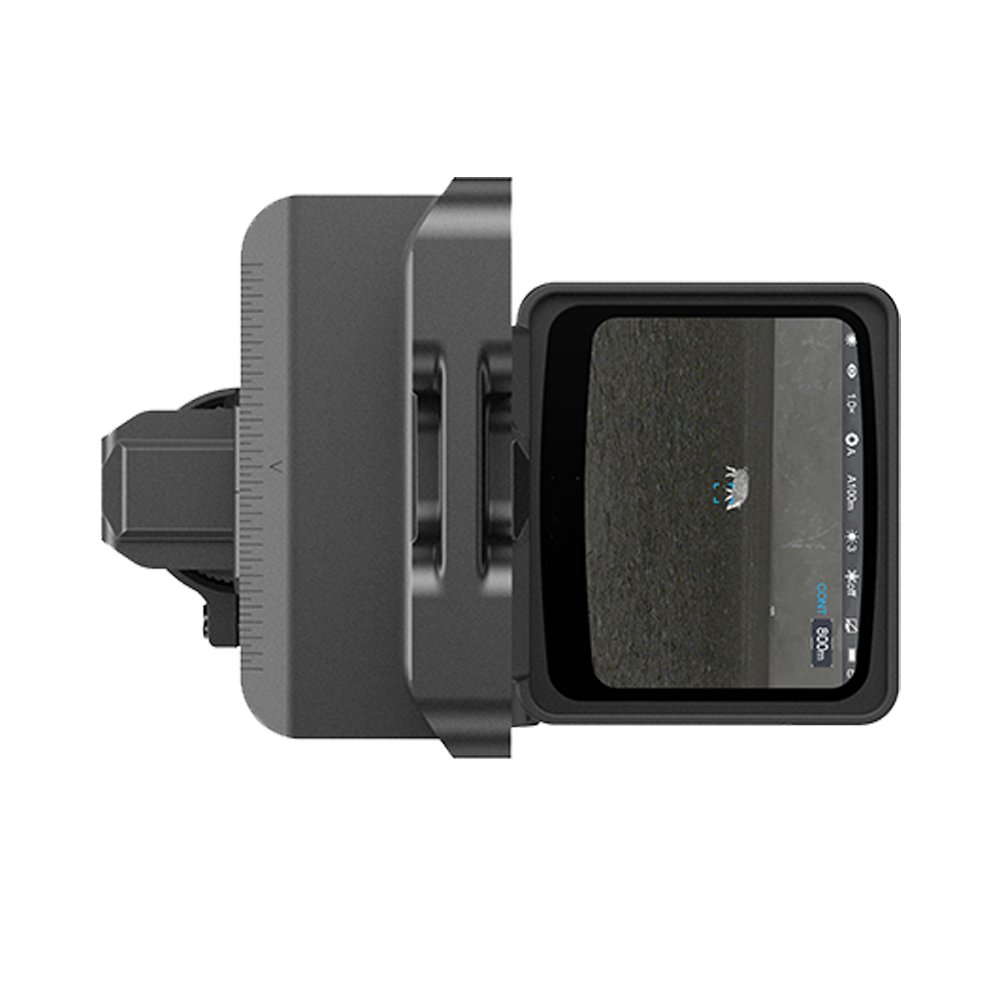

  • Rotatable Screen For Left or Right-handed Users
  • Optional 18500 & 18650 Battery

Product Packages:

  • AR3L Series Thermal Imager +External ranging
  • USB Data Cable
  • Lens Cleaning Cloth
  • Allen wrenche(s Inch 1/8 Allen wrench and metric 2.5mm Allen wrench)

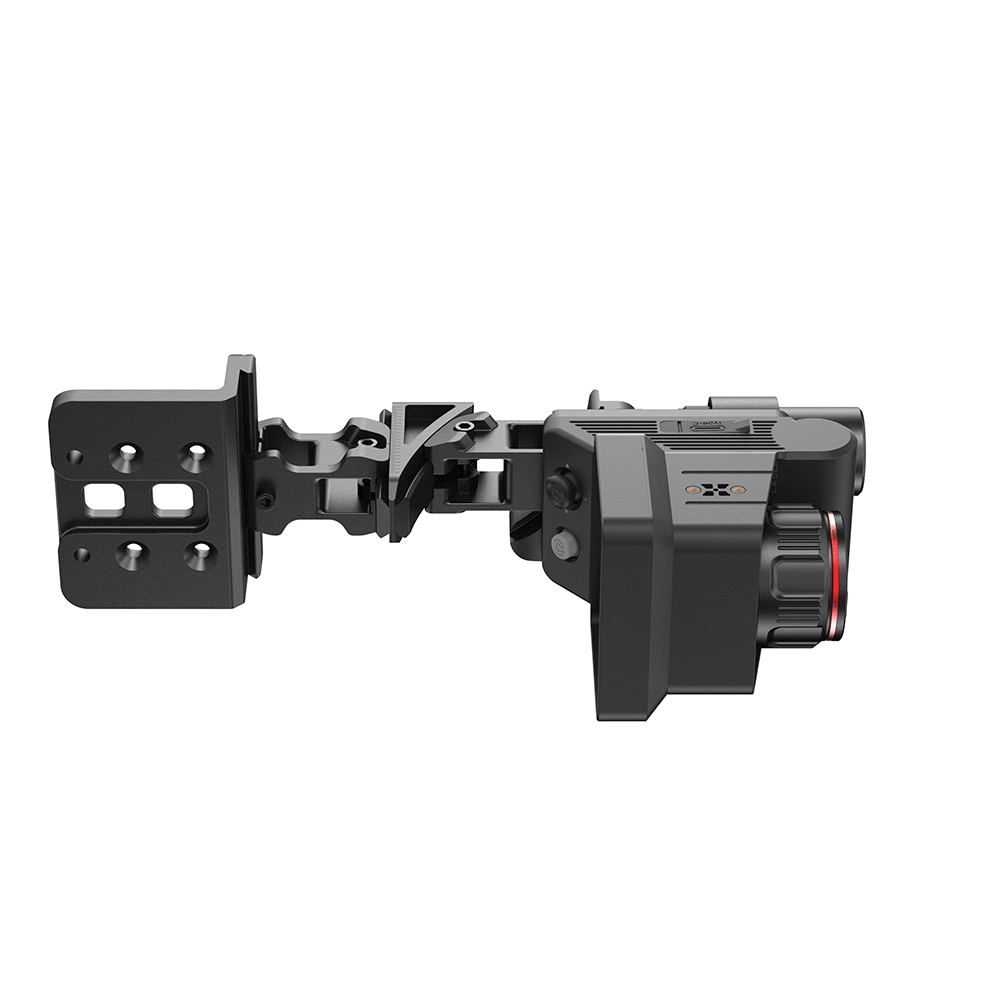

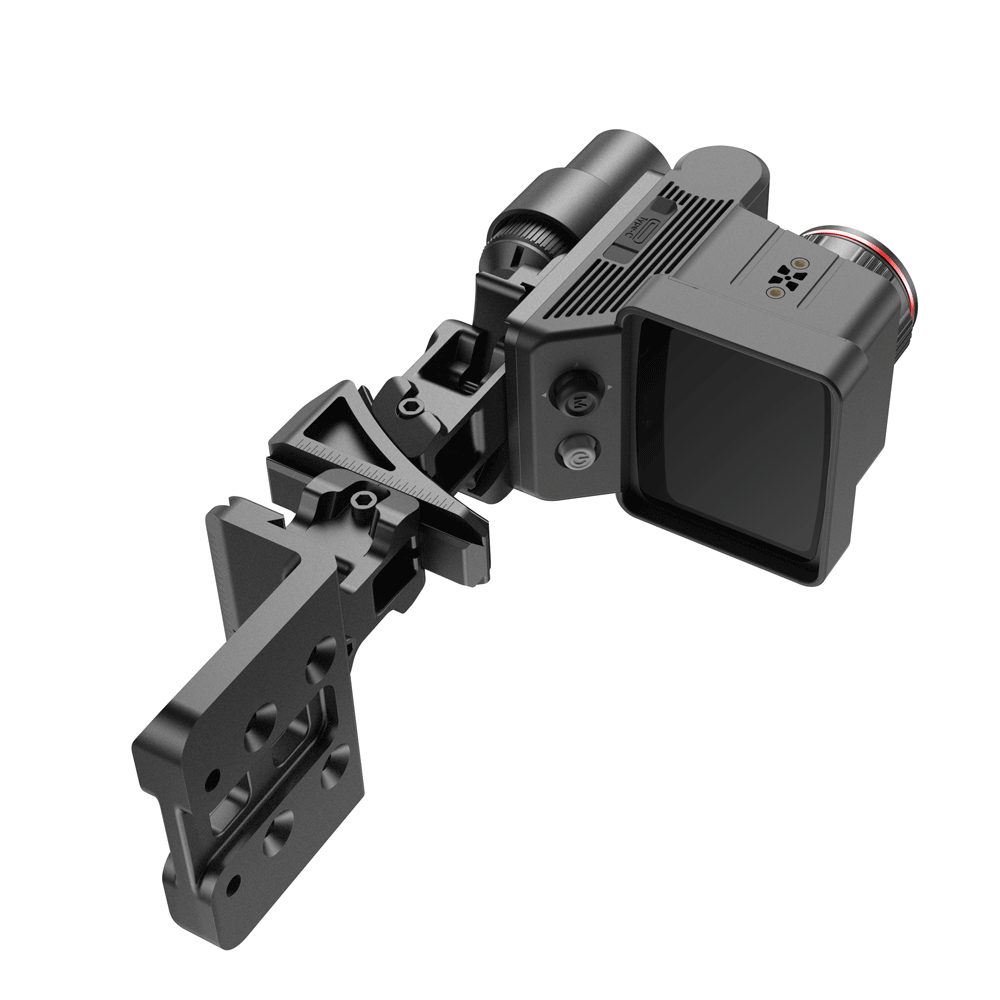

  •  Composite bow adapter
  • Accessory screw(s 4 pieces of M3* 6, 4 pieces of inch hexagon socket 3/16 countersunk head cap head screw)
  • Composite bow adapter

Prodcut Maintance:

Product maintenance shall be carried out at least twice a year and include the following contents:
· Wipe the exterior surfaces of metal and plastic parts with a piece of cotton cloth to remove dust and dirt. Silicone grease may be used during the wiping process.
·Use a non-greasy organic solvent to clean the battery’s electrical contacts and battery slots.
Check the glass surface of the screen and lens. If necessary, remove dust or other foreign objects from the lens (preferably using a non-contact method). Optical surface cleaning should be done using professional wiping tools and solvents.
Service Policy

Fast-Delivery Guarantee
Enjoy fast delivery with a service fee refund in cases of delayed delivery (not applicable in select remote areas).
FedEx & DHL as the method of Express in priority

Lead time : 3-7 working days
15-Day Returns
Easy shopping with hassle-free returns and replacements.
Any quality issues with the product within 15 days, proactive remote technical support will prioritize assisting you. If the issue cannot be resolved, an immediate return and refund will be arranged for you as soon as possible. ( Excluding damage caused by human factors )
Weight 830 lbs
Dimensions 245 × 96 × 60 in
Objective Lens

25mm

Detectiion Range, m (Target size:1.7m×0.5m, P(n)=99%)

1300

Display Parameter

2.6” AMOLED; Resolution: 800×600

Battery Type/Capacity/Output Voltage

18500/ 1500mAh /3.7V

Ranging distance,m

10-1000
